ENGINE Net Power ISO 9249 107 kW Engine Model Cat C4.4 Engine Power – ISO 14396 108 kW Bore 105 mm Stroke 127 mm Displacement 4.4 L HYDRAULIC SYSTEM Main System – Maximum Flow 429 L/min (113 gpm) Maximum Pressure – Equipment 35000 kPa Maximum Pressure – Travel Circuit 34300 kPa Maximum Pressure – Platform Rotation Mechanism 25000 kPa PLATFORM SWIVEL MECHANISM Platform Rotation Speed 11.6 r/min Maximum Torque Developed by Platform Rotation Mechanism Drive 74.4 kN•m WEIGHT PARAMETERS Operating Weight 19800 kg FILL CAPACITY Fuel tank capacity 345 L Cooling system 25 L Engine oil 15 L Swing drive (each) 12 L Final drive each 5 L Hydraulic system (including tank) 234 L Hydraulic tank 115 L DIMENSIONS Boom reach 5.7 m (18 lb 8 in) Stick reach 2.9 m (9 lb 6 in) Bucket 1.0 m³ (1.31 yd³) Transport height to top of cab 2960 mm Guard rail height 2950 mm Transport length 9530 mm Rear swing reach 2830 mm Ground clearance under counterweight 1050 mm Ground clearance 470 mm Track belt length 4450 mm Distance between roller centers 10.9 mm Track width 2380 mm Transport width 2980 mm WORKING FORCES AND RANGES Maximum digging depth 6710 mm Boom reach 5.7 m (18 lb 8 in) Stick reach 2.9 m (9 lb 6 in) Bucket 1.0 m³ (1.31 yd³) Maximum reach at ground level 9850 mm Maximum cutting height 9450 mm Maximum loading height 6500 mm Minimum loading height 2180 mm Maximum flat bottom digging depth 2440 mm (8 ft) 6540 mm Maximum digging depth (vertical wall height) 6540 mm Force Digging at bucket: ISO 129 kN Digging force at stick: ISO 99 kN

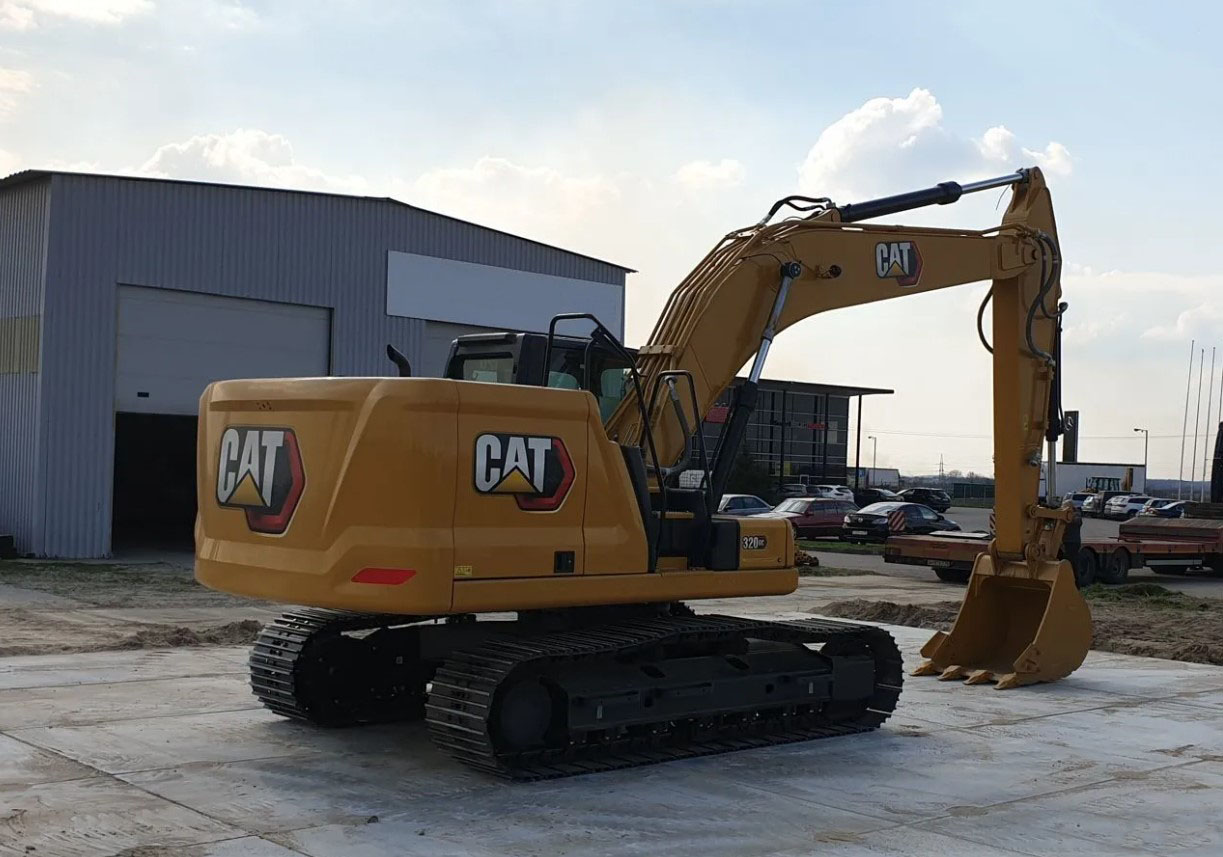

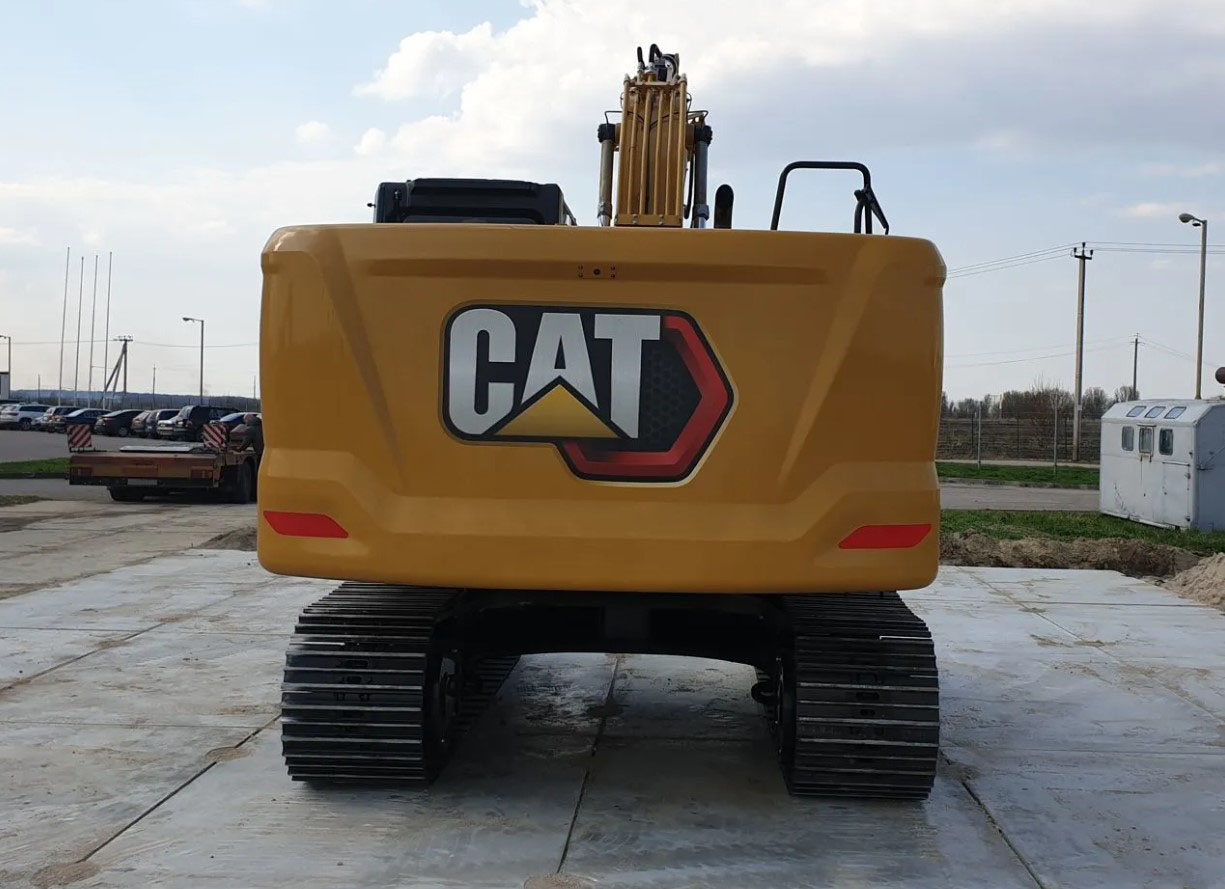

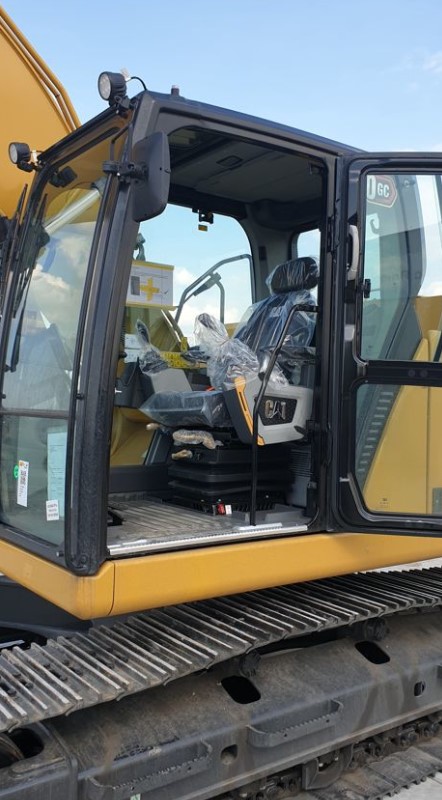

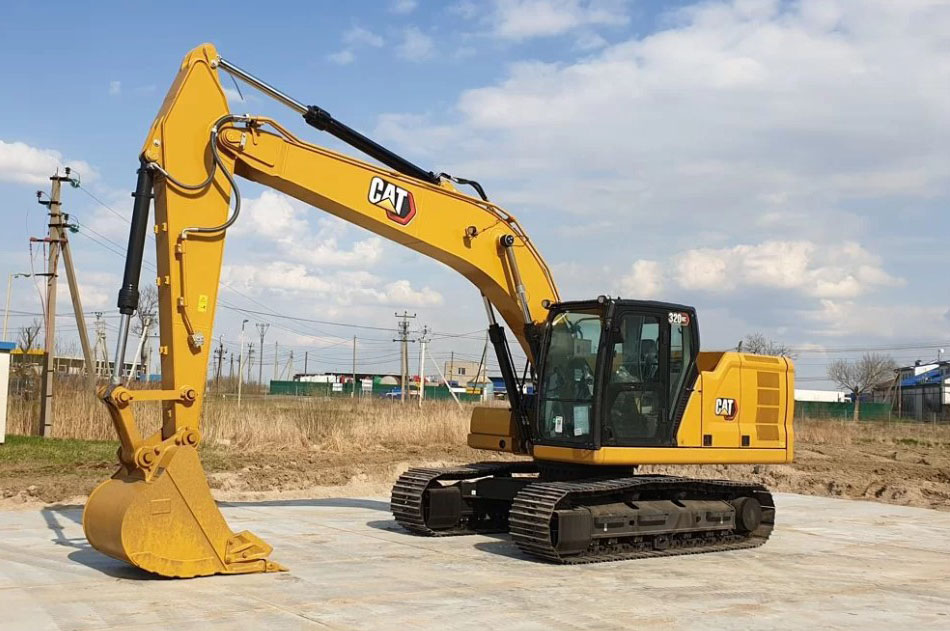

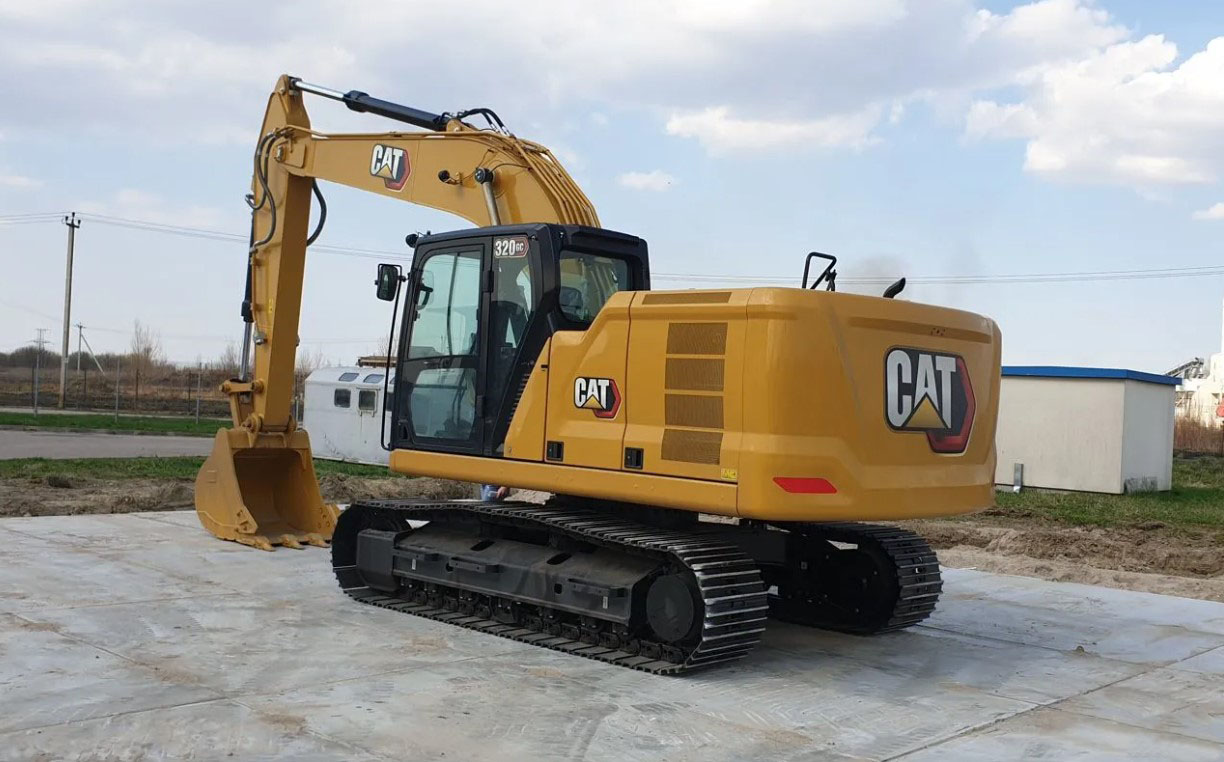

CAT 320 GC – 2023
-
S/ 256,000.00
Brand: CAT
Model: 320GC
Year of Manufacture: 2023
Hours: 493 m/h
