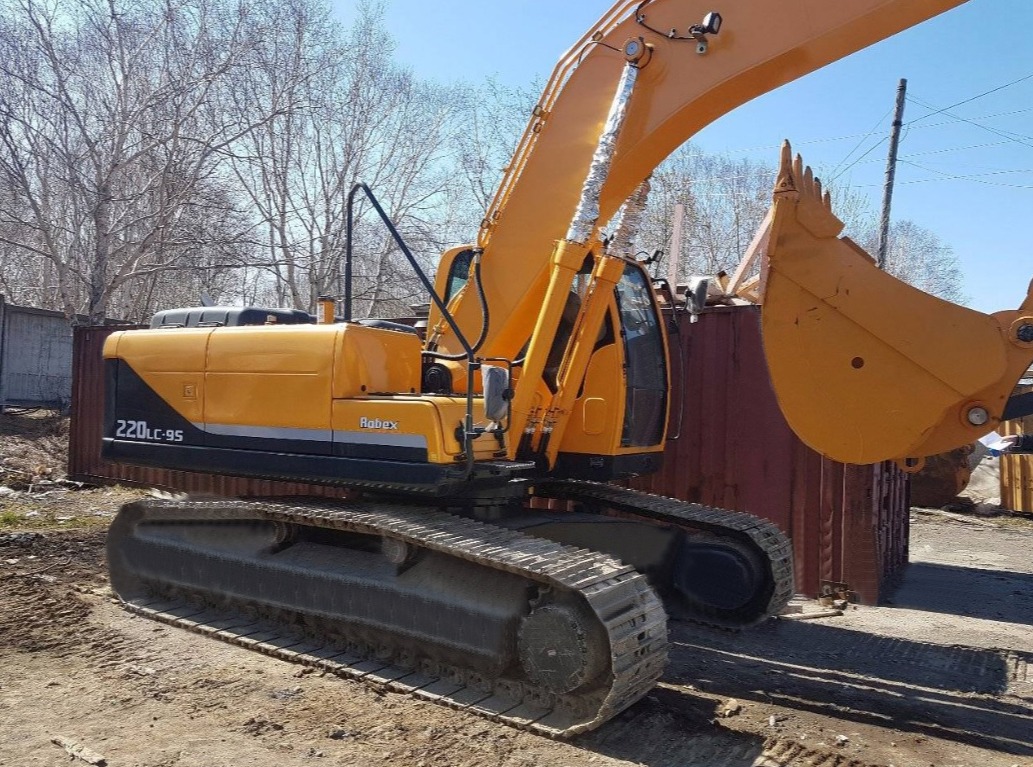

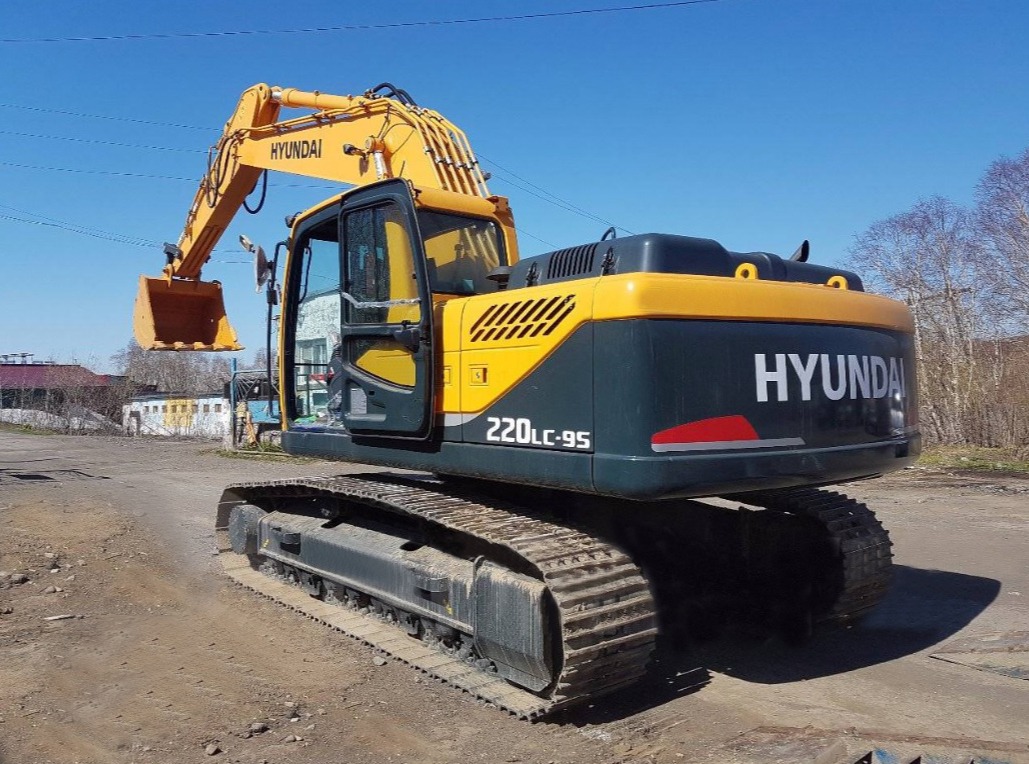

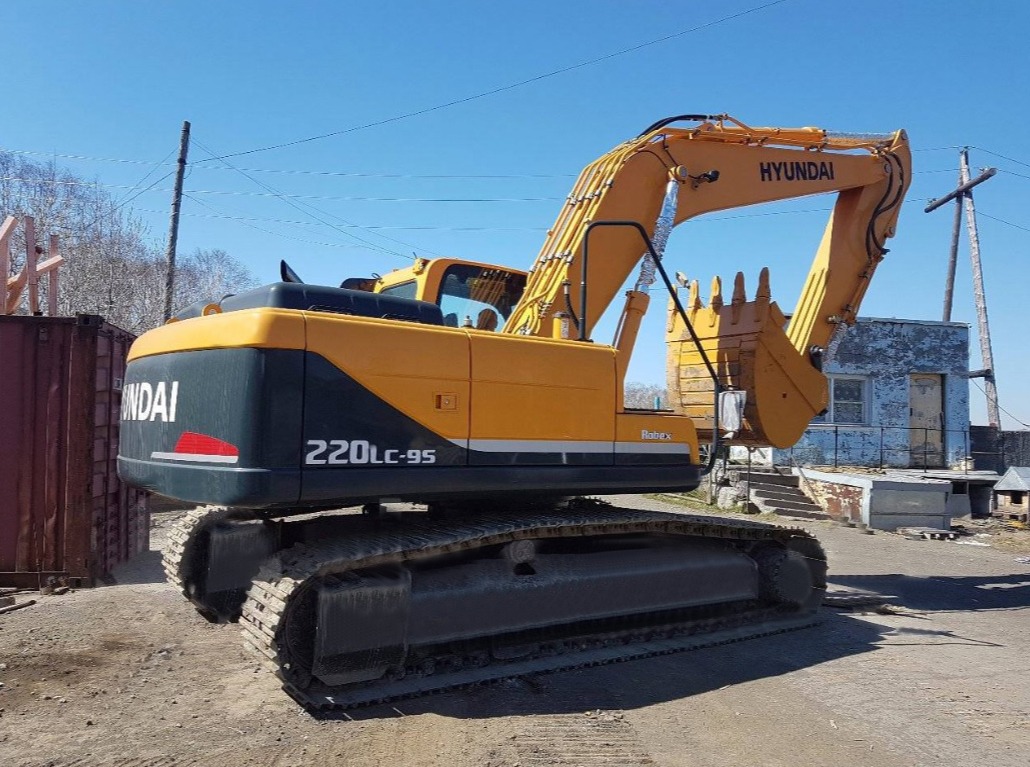

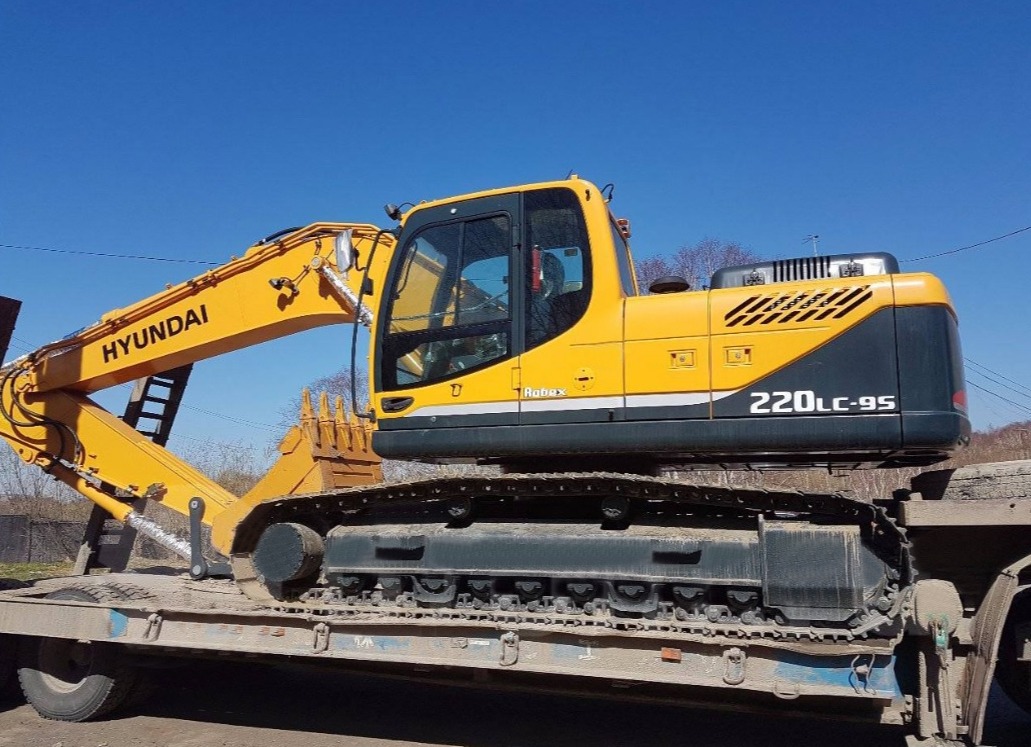

Full name Hyundai R220LC crawler excavator
Total weight, kg 22000-22760
engine
Engine model QSB6.7
Engine type Diesel
Number and arrangement of cylinders 6
Engine displacement, cm3 6700
Engine power, kW (HP) 124 (167)
Estimated speed, rpm 1950
Bore and stroke 107×124
Engine manufacturer (brand) CUMMINS
fuel system
Maximum speed, km/h 5.7
Dimensions
Ground clearance, mm 480
Base wheel (track), mm 3650
Overall dimensions, mm (9520-12030) x (2990-3290) x (3030-3480)
Track width, mm 500/600/700/800/900
Refueling tanks
Fuel tank, l 400
Cooling system, l 35
Hydraulic tank, l. 160
Operating characteristics
Digging depth, mm 5820-11760
Dumping height, mm 6330-10280
Attachments
Bucket capacity, cubic meters. 0.92
Excavator Features
Rear Platform Swing Radius, mm 2840
Platform Swing Speed, rpm 10.7
Digging Height, mm 9140-12550
Maximum Digging Radius, mm 9140-15220
Maximum Reach (per Ground Level), mm 8960-15120
